Performance Overview
Weather Performance
Independently Weather Performance Tested to BS 6375-1
| Air Infiltration BS EN 1026 | Class 4 |
| Watertightness BS EN 1027 | Class E900 |
| Wind Resistance BS EN : 12211 | E2400 |
Size Limitation
| Vent Width | Vent Height | Vent Weight | |
| Top Hung Casement | 2000mm | 2000mm | 100Kg |
| Side Hung Casement | 1000mm | 1800mm | 47Kg |
Acoustic
BS EN ISO 140-3 and BS EN ISO 717-1
Security
This system has been successfully tested to PAS 24 (using the annex C method) specification for "Enhanced Security Performance Requirements for Doorsets and Windows" as generally accepted on Secure by Design projects.
BREEAM Sustainability Rating
A+ Rating
Window Energy Rating
B Rating
Materials
Aluminium profiles are extruded from aluminium alloy 6060T6, T5 or T4 complying with the recommendations of BS EN 12020-2 / BS EN 755 Parts 1 to 9. Polyamide thermal breaks are produced from glass reinforced nylon sections designed to withstand temperatures in excess of 200°C, allowing the sections to be powder coated after thermally breaking.
Construction
Frame members are mitre cut at 45°, corners are reinforced with extruded aluminium crimping cleats and corner braces, and a secure joint is formed by pneumatically crimping into the extruded crimping cleat. Mullion and transom bars are square cut shaped and fixed securely to the frame by means of stainless steel screws and fixing cleats. All frame joints are sealed during construction against entry of water using Metal Technology’s two-part adhesive. Metal Technology recommend that only A2 or A4 Austenitic (300 series/class 70) stainless steel fixing screws are used in the assembly of their products.
Finishes
The range of sections can be provided in either of the following ranges of finishes:
- Anodised to BS 1615 or BS 3987 or BS EN 12373-1
- Powder organic coated to BS 6496 or BS EN 12206-1
This system can accommodate a different colour finish internally to that used externally. Metal Technology's powder coating is produced to Qualicoat standards.
Glazing
The system can be glazed internally or externally and can accommodate glazing units from 24mm to 34mm.
Materials
Aluminium profiles are extruded from aluminium alloy 6060T6, T5 or T4 complying with the recommendations of BS EN 12020-2 / BS EN 755 Parts 1 to 9. Polyamide thermal breaks are produced from glass reinforced nylon sections designed to withstand temperatures in excess of 200°C, allowing the sections to be powder coated after thermally breaking.
Construction
Frame members are mitre cut at 45°, corners are reinforced with extruded aluminium crimping cleats and corner braces, and a secure joint is formed by pneumatically crimping into the extruded crimping cleat. Mullion and transom bars are square cut shaped and fixed securely to the frame by means of stainless steel screws and fixing cleats. All frame joints are sealed during construction against entry of water using Metal Technology’s two-part adhesive. Metal Technology recommend that only A2 or A4 Austenitic (300 series/class 70) stainless steel fixing screws are used in the assembly of their products.
Finishes
The range of sections can be provided in either of the following ranges of finishes:
- Anodised to BS 1615 or BS 3987 or BS EN 12373-1
- Powder organic coated to BS 6496 or BS EN 12206-1
This system can accommodate a different colour finish internally to that used externally. Metal Technology's powder coating is produced to Qualicoat standards.
Glazing
The system can be glazed internally or externally and can accommodate glazing units from 24mm to 34mm.

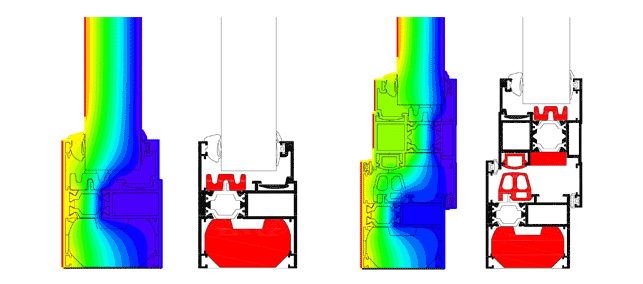

Thermal Performance
Metal Technology’s
range, in conjunction with the correct glass specification, is designed to aid compliance with the latest thermal requirements of the current building regulations. The polyamide thermal break profiles have been specifically designed to minimise heat transfer across the window profiles.
Thermal performance is further improved through the introduction of specially designed thermal gaskets and foam profiles. These reduce radiation heat loss across the air cavities within the window profiles to provide additional thermal enhancement.
| System 4-20Hi+ | U-frame values |
| Fixed light outer frame | 1.91 W/m2K |
| Outer frame and glazed-in vent | 2.26 W/m2K |
The following table, based on a standard commercial GGF window configuration and warm edge spacers, demonstrates how such improved U-frame values then contribute to improving the overall thermal performance of a complete window.
| Achievable whole window U-value | Centre pane U-value | |
| 1.1 W/m2K | 0.7 W/m2K | |
| 4-20Hi+ glazed-in casement | 1.56 W/m2K | 1.25 W/m2K |
Metal Technology can provide tailored U-value calculations using their dedicated estimating software to calculate overall project average window U-values for their full range of systems.
